Striped Card Type

This card design was created by CollinHeist, and was inspired by some of the official artwork for The Rookie.

These cards feature a solid color overlay with stripes of rectangles "cut" out to expose the underlying Source Image. By default the stripes are randomly placed and sized, but this can be adjusted with an extra. The position of the text can also be adjusted to any of the four corners.

Labeled Card Elements

Stripe Adjustments

Angle

The angle of the stripes can also be adjusted with the Stripe Angle extra. A value of 90 degrees will result in the stripes being perfectly vertical, and the "orientation" of the stripes can be reversed by specifying angles larger than 90.

Examples

Definition

Advanced Setting

This setting is fairly complicated relative to the other available extras.

The specific order, width, and level of randomization of the stripes can be fine-tuned with the Stripe Definition extra.

By default, this card selects a random size and then a random width of that size - repeating the process until the card is "full" (i.e. no more horizontal space). These pre-defined sizes are "small", "medium", and "large" and have been abbreviated as s, m, and l.

This extra supports six different "kinds" of unique patterns to control how the stripes are drawn.

Random Order, Random Sizes

Specifying a definition like random[sml] will instruct TCM to randomly select a stripe of the listed sizes in the specified ratio. This means that repeating sizes - e.g. random[sssssml] - will result in those appearing with increased frequency. For example sml will mean all sizes are equally likely, while ssml will mean small stripes are twice as likely as medium or large. The width of each stripe will use the builtin size ranges.

Examples

Notice how the right-image has a much higher frequency of large (l) stripes.

This pattern will always fill the width of the card.

Random Order, Fixed Sizes

Specifying a definition like random[100,200] will instruct TCM to randomly select stripes of the listed width in the specified ratio. For example, random[100,200] will result in random stripes of either 100 or 200 pixels wide. Repitition is allowed. These must be comma-separated positive values.

Examples

This pattern will always fill the width of the card.

Random Order, Random Size Ranges

Specifying a definition like random[10-20,200-250] will instruct TCM to randomly select stripes of random widths from the specified ranges in the specified ratios. For example: random[10-20,200-250] will result in random stripes of widths between 10 and 20 pixels or 200 and 250 pixels (in equal likelihood). Repitition is allowed. These must be comma-separated positive values in which the second value is equal to or greater than the first.

Examples

This pattern will always fill the width of the card.

Fixed Order, Random Sizes

Specifying a definition like sml will instruct TCM to generate stripes in the specified order of random widths. For example: sml will always generate a small, medium, and large stripe (repeated if a + is specified). The width of each stripe will use the builtin size ranges.

Examples

This pattern will not repeat unless it ends with + - e.g. sml+.

Fixed Order, Fixed Sizes

Specifying a definition like 10,100,400 will instruct TCM to generate stripes in the specified order of the specified widths. For example: 10,100,400 will generate stripes that are 10, 100, and 400 pixels wide (repeated if a + is specified). These must be comma-separated positive values.

Examples

This pattern will not repeat unless it ends with + - e.g. 10,100,400+.

Fixed Order, Random Size Ranges

Specifying a pattern like 10-50,400-800 will instruct TCM to generate stripes in the specified order of random widths from the specified ranges. For example: 10-50,400-800 will result in a stripe between 10 and 50 pixels wide, and another between 400 and 800 pixels wide (repeated if a + is specified). These must be comma-separated positive values.

Examples

This pattern will not repeat unless it ends with + - e.g. 10-50,400-800+.

Inter-Stripe Spacing

The spacing between sequential stripes can be adjusted with the Inter-stripe Spacing extra.

Examples

Episode Text Adjustments

For adjustments, the "episode text" refers to the combined season and episode text.

Color

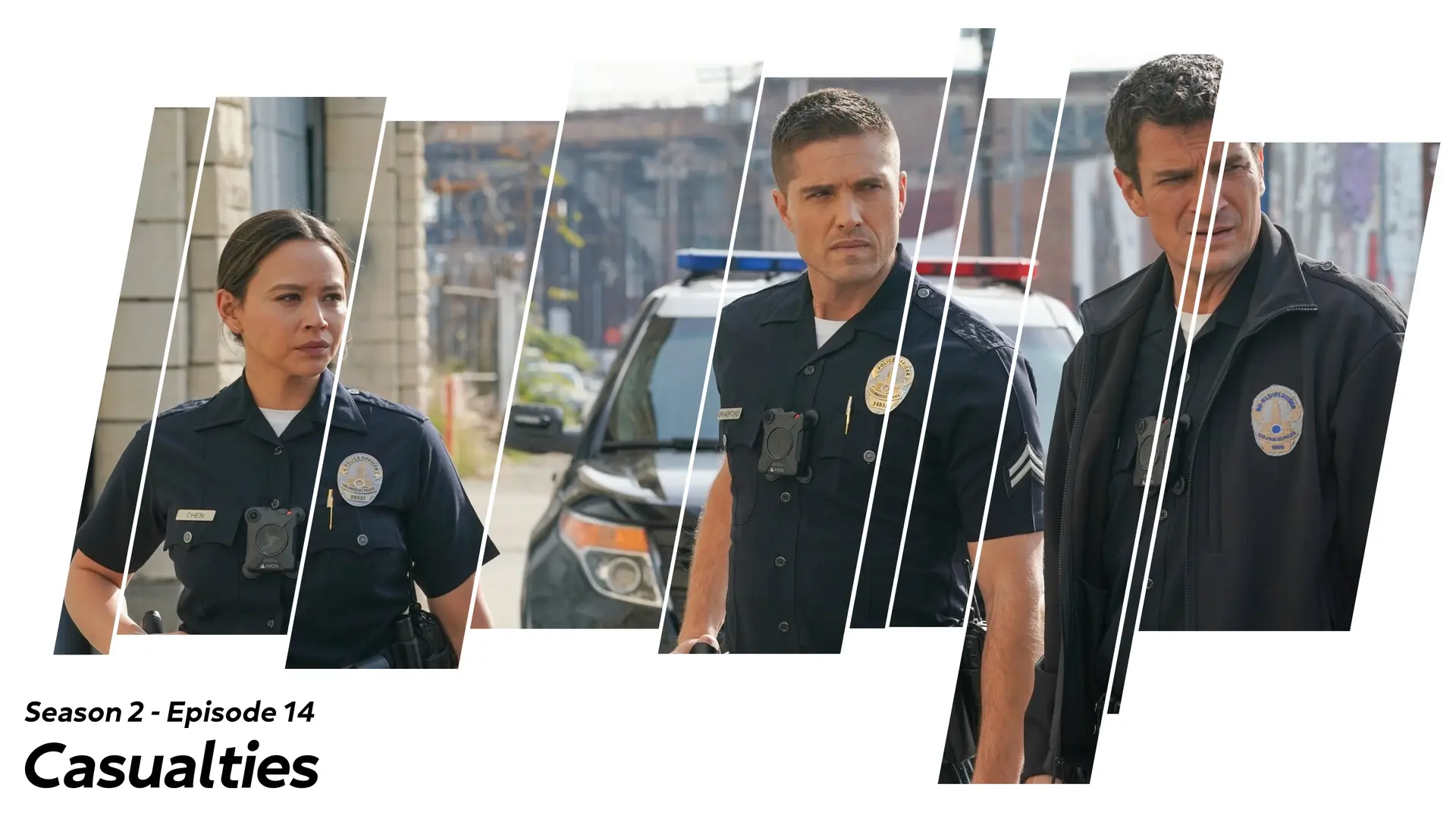

The color of the episode text can be adjusted with the Episode Text Color extra.

Examples

Size

The size of the episode text can be adjusted with the Episode Text Font Size extra. The boundaries for the stripe height are dynamically adjusted to prevent the stripes from overlapping the episode text.

Examples

Overlay Color

The color of the solid overlay can be adjusted with the Overlay Color extra. This extra does support transparency.

Examples

Separator Character

If both the season and episode text are displayed on the Card, then a separator character is added between them. This character can be adjusted with the Separator Character extra.

Mask Images

This card also natively supports mask images. Like all mask images, TCM will automatically search for alongside the input Source Image in the Series' source directory, and apply this atop all other Card effects.

Example
