Graph Card Type

This card type features a bar graph progress bar which can be used to indicate the total series progress. This "progress" is parsed from the episode text, which should be entered as a fraction - for example:

episode_text_format: "{season_number} / {season_episode_max}"

Will update the "progress" of the graph from 0% to 100% for all episodes in a season (e.g. the first episode is near 0%, the last episode 100%). This is the default behavior.

This card type is used whenever card_type is specified as graph.

Example

Valid extras

Below is a table of all valid series extras parsed by this card. These are described in greater detail below.

Label Default Value Description
graph_background_color rgba(140,140,140,0.5) Background color of the graph
graph_color rgb(99,184,255) Color of the filled-in portion of the graph coloring
graph_inset 75 How far to inset the graph from the edges
graph_radius 175 Radius of the graph
graph_text_font_size 1.0 Size adjustment for the graph text
graph_width 25 The width of the graph
fill_scale 0.6 Scale for how wide the filled graph should appear
omit_gradient false Whether to omit the gradient overlay
percentage - Manual fill percentage of the graph
text_position lower left Where on the image to position the graph and text

Customization

Graph

Background Color (graph_background_color)

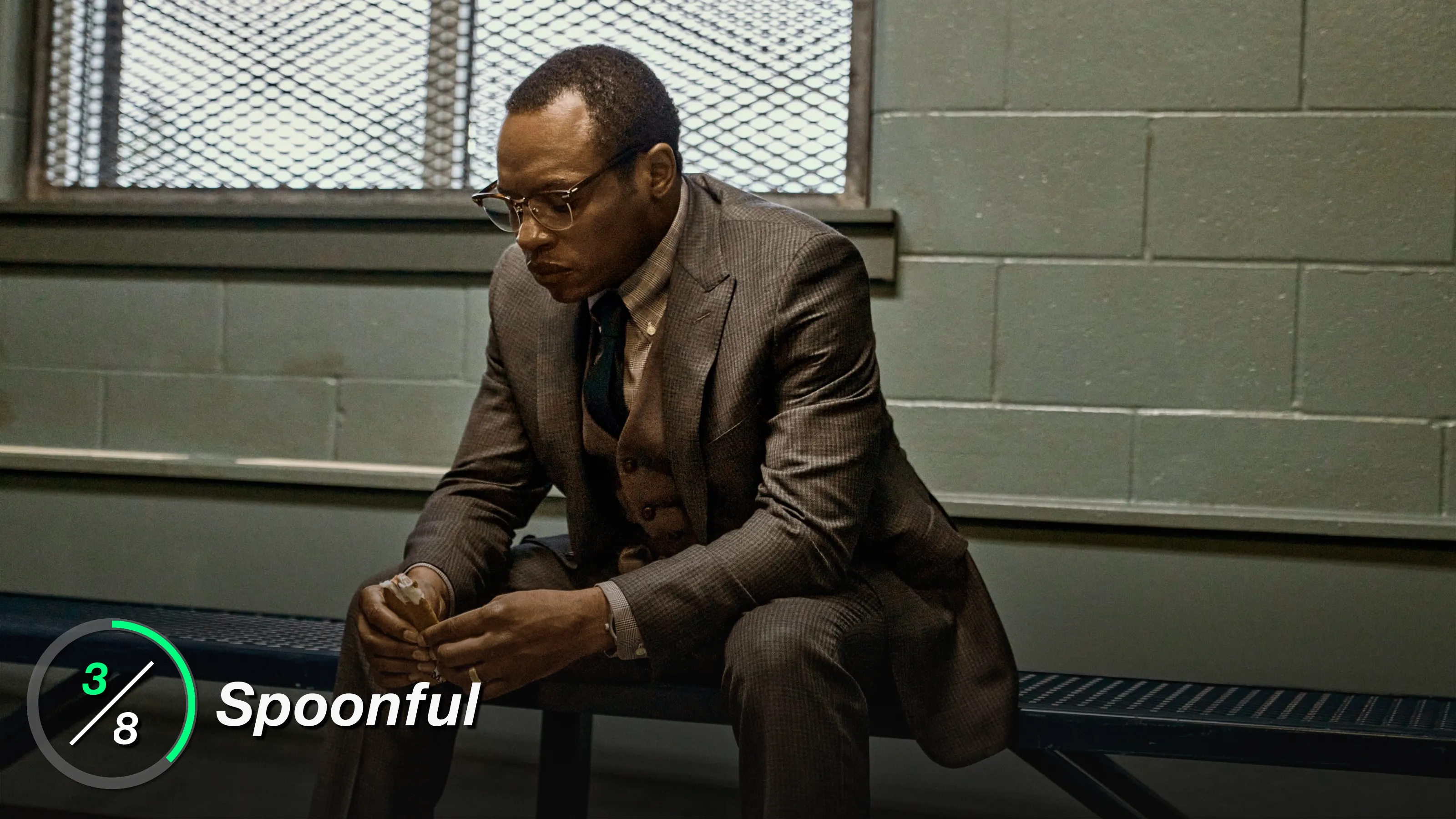

The background color of the graph can be adjusted with the graph_background_color extra. This color can transparency so that part of the image behind the graph can be seen. This defaults to rgba(140,140,140,0.5) (a neutral gray with 50% opacity).

Example
tv.yml
series:
  Reacher (2022):
    card_type: graph
    extras:
      graph_background_color: "rgba(232,232,232,0.2)"

Fill Color (graph_color)

The filled portion of the graph (as well as the color of the inside numerator and denominator) can be adjusted with the graph_color extra. This defaults to rgb(99,184,255) (which is a light blue).

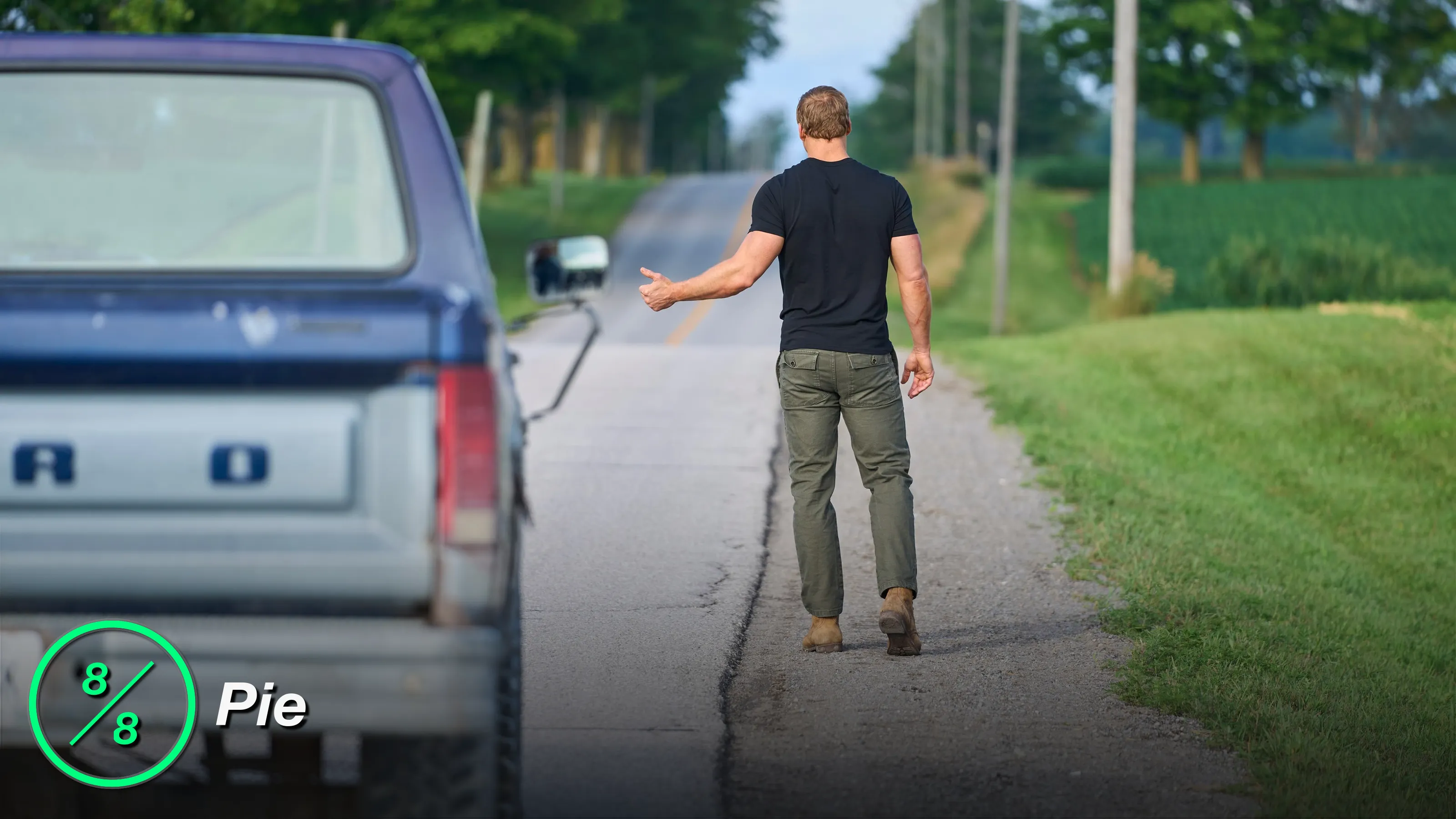

This color is also used for the numerator (the top part of the fraction), and the line/denominator (the bottom part of the fraction) if the filled percentage is 100% (see the example below).

Example
tv.yml
series:
  Reacher (2022):
    card_type: graph
    extras:
      graph_color: SpringGreen1

Fill Percentage (percentage)

This card determines how "filled" to make the graph by parsing the episode text. This means that by default, the progress of the graph will be based on the episode number and how many episodes are in that season.

If you'd like to set the percentage to a fixed number (e.g. something that does not change), then the percentage extra can be specified. This must be a number (intepreted as a percentage) between 0.0 and 1.0.

This can be specified for the entire series, or per-episode in the data file.

Example
tv.yml
series:
  Reacher (2022):
    card_type: graph
    extras:
      percentage: 0.3 # (1)!
  1. This indicates 30% filled
data.yml
data:
  Season 1:
    1:
      title: Welcome to Margrave
      percentage: 0.125 # (1)!
    2:
      title: First Dance
      percentage: 0.250 # (2)!
  1. 12.5% filled
  2. 25.0% filled

Fill Scale (fill_scale)

How full relative to the background of the graph that the filled portion of the graph appears can be adjusted with the fill_scale extra. This defaults to 0.6, meaning 60% of the width of the graph will be colored. This can be any value between 0.0 (no fill at all) and 1.0 (completely filled).

Example
tv.yml
series:
  Reacher (2022):
    card_type: graph
    extras:
      fill_scale: 0.2

Font Size (graph_text_font_size)

Title Text Size

The font size of the title text is separately controlled with the normal font size value.

The font size of the fractional text inside the graph can be adjusted with the graph_text_font_size extra. This is a scalar value greater than 0.0, and indicates how much to decrease or increase the size of the font from the default.

Example
tv.yml
series:
  Reacher (2022):
    card_type: graph
    extras:
      graph_text_font_size: 1.35

Inset (graph_inset)

How far from the edge of the image the shape is drawn can be adjusted with the graph_inset Extra. This affects the vertical and horizontal spacing of the graph.

The default value is 75, but can be any value between 0 and 1800. This is a unit in pixels.

Example
tv.yml
series:
  Reacher (2022):
    card_type: graph
    extras:
      graph_inset: 30

Radius (graph_radius)

The radius of the graph can be adjusted with the graph_radius. The default value is 175, but can be any value between 50 and 900. This is a unit in pixels.

Note

Adjusting this value will also scale the size of the graph text unless the graph_text_font_size is manually set.

Example
tv.yml
series:
  Reacher (2022):
    card_type: graph
    extras:
      graph_radius: 125

Width (graph_width)

The width of the graph can be adjusted with the graph_width extra. This is different than the fill_scale extra because this affects how wide all parts of the graph appear, instead of just the filled-in portions.

The default value is 25. This can be any non-negative value.

Example
tv.yml
series:
  Reacher (2022):
    card_type: graph
    extras:
      graph_width: 40

Gradient Overlay (omit_gradient)

By default, TCM adds a subtle gradient overlay on the outer edge of the image in the orientation of the indicated text_position. This can be disabled by setting omit_gradient: true.

Example
tv.yml
series:
  Reacher (2022):
    card_type: graph
    extras:
      omit_gradient: true

Position (text_position)

Where to position the graph and text can be controlled with the text_position extra. This defaults to lower left, but can be upper left, upper right, left, right, lower left or lower right.

The position will also adjust the orientation of the gradient overlay, if not disabled.

Example
tv.yml
series:
  Reacher (2022):
    card_type: graph
    extras:
      text_position: right
